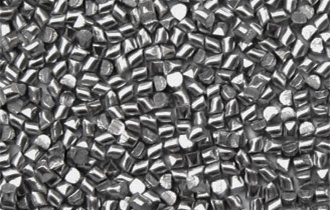

Zinc cut wire shot
It is mainly used for deburring and cleaning all kinds of aluminium alloy and zinc die casting products. The specific gravity is close to that of steel, and the hardness is low, so it can not only remove large burrs without abrading the surface of the product, but also form an anticorrosive and antirust layer on the surface of the metal. In addition, unlike aluminium abrasives, the ignition point of the dust is extremely low, making it safe. It also has a significant whitening effect on the surface of the workpiece.
-
Typical physical properties
· Hardness Zn98Al2: ca. 55 HV0,1
· Hardness Zn unalloyed approx. 30 – 45 HV0,1
· Grain shape: cylindrical / rounded
· Melting point: ca. 420°C
· Specific gravity: approx. 6,7 – 7,5g/cm³
· Bulk density*: approx. 4.0g/cm³
*depending on grain size
Chemical Compostion
Zn98Al2
Zn (ISO 14919)
Al
1,50 – 2,50 %
0.003%
Zn
approx. 98,00 %
99,99 %
Zi
0.002%
Cu
0.001%
-
Application areas
Deburring
Surface finish
-
Sizes

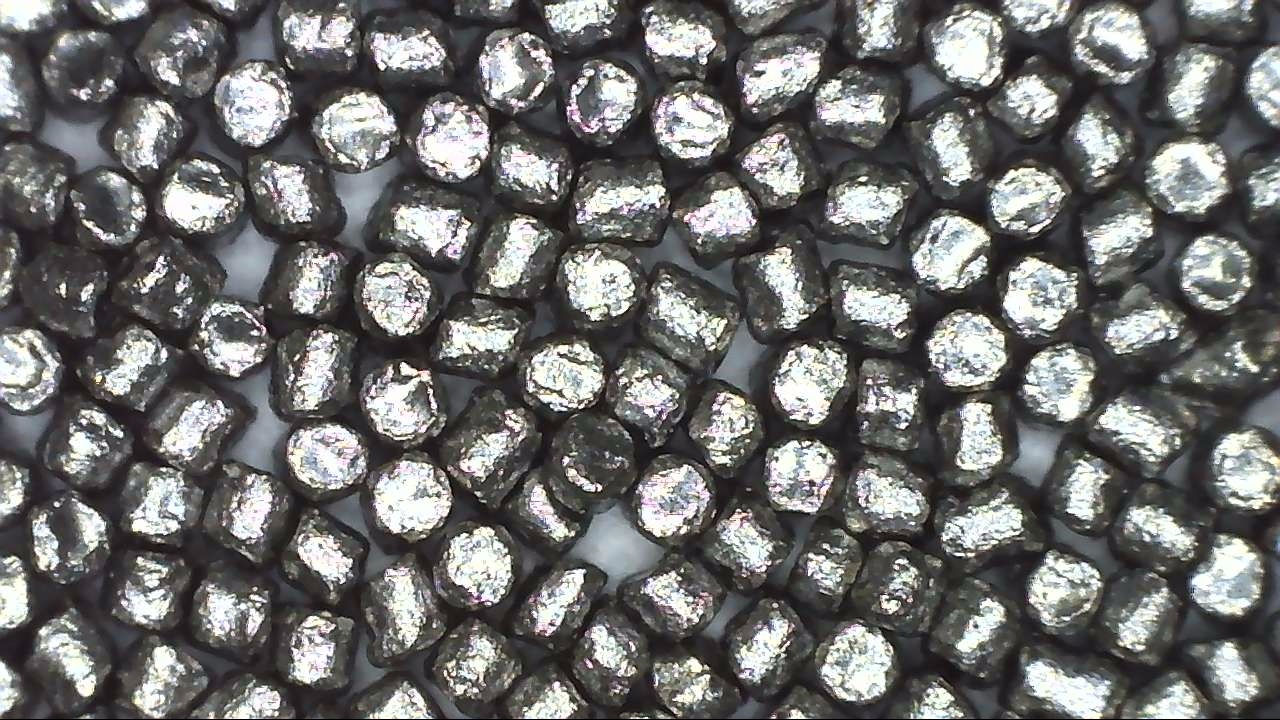

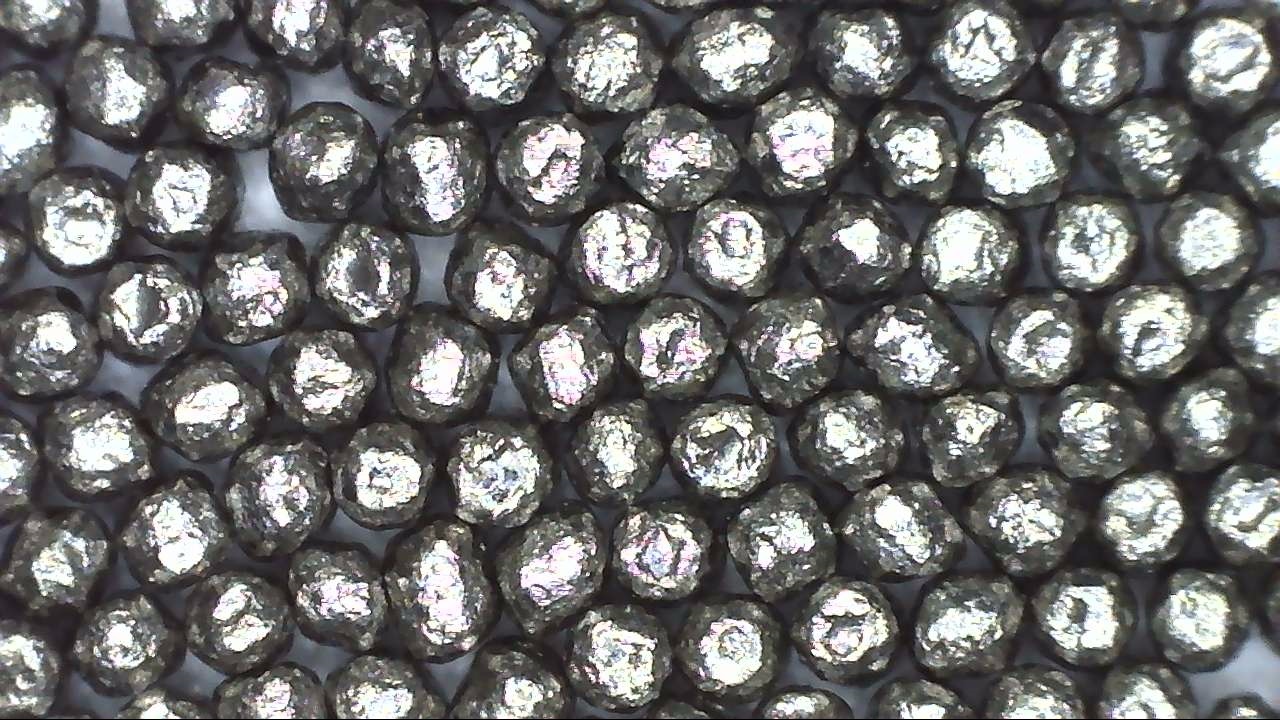

Cylindrical / Spherical
Diameter(mm)
0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2, 1.4, 1.6, 1.8
Other grain sizes can be produced if required.
Blasting System
Pressure blast machines
Wheel blast machines
-
Packaging

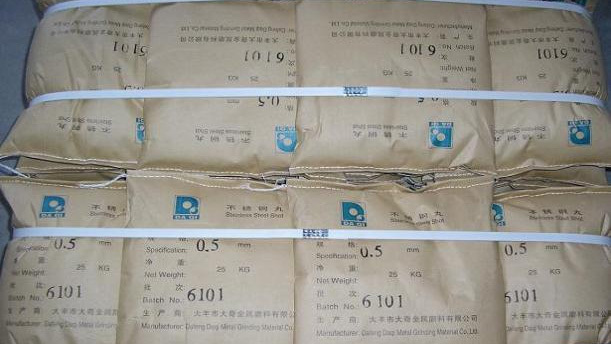

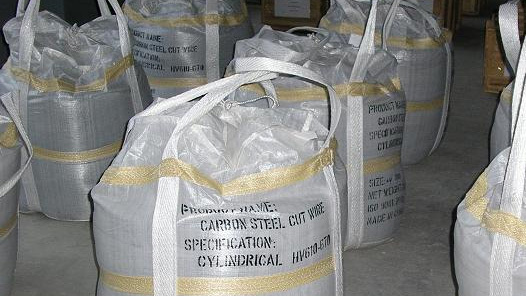

25kg sacks on pallet up to 1000kg; 1t loose in a big bag
